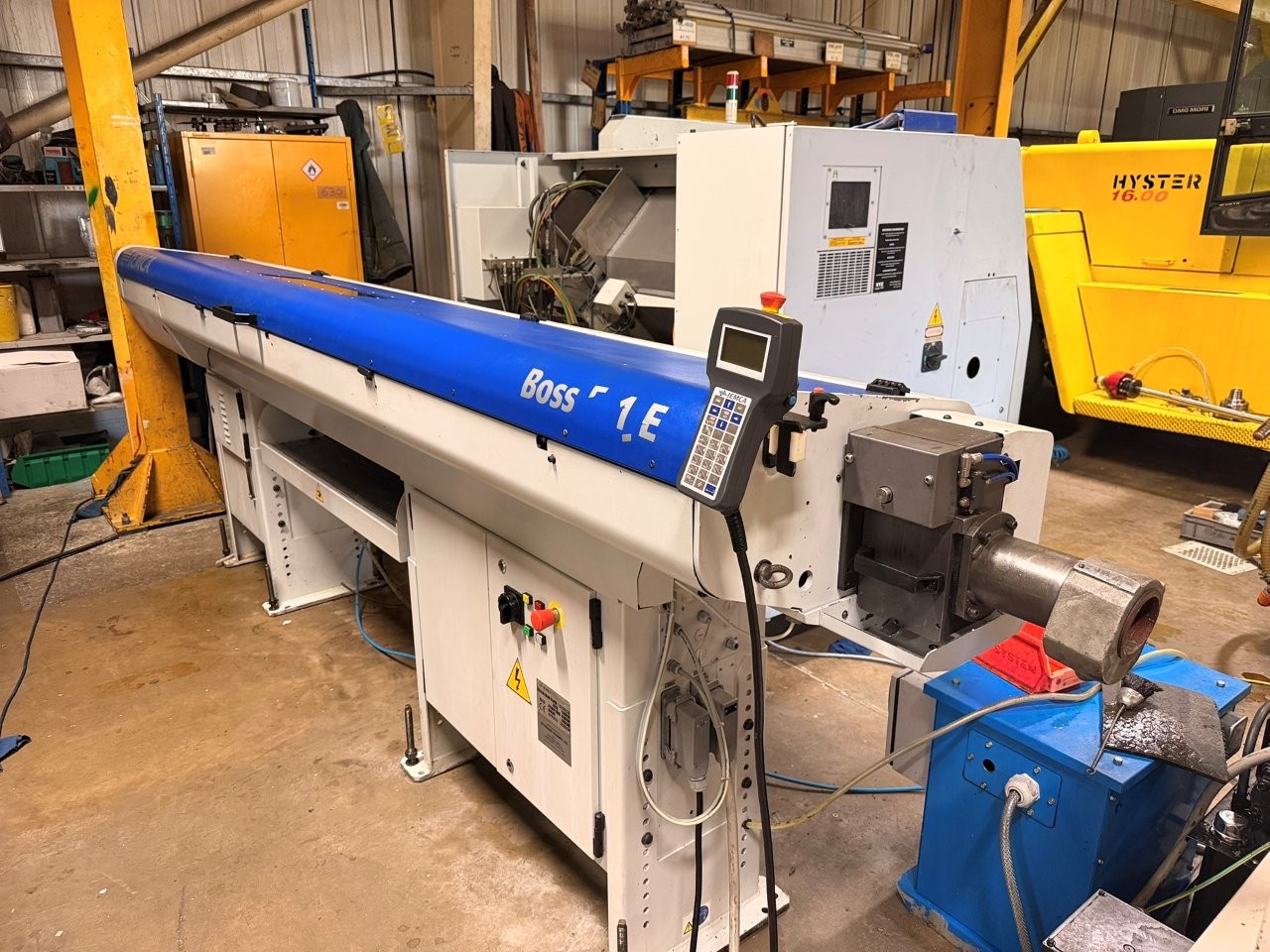

Very good IEMCA Boss 551E Bar feeder. The Boss is the bar feeder for long bars which has been sold the most in the world with more than 30,000 installed units. The Boss 551 Easy is an automatic bar feeder suitable for lathes with fixed and mobile headstock. Fitted with 51 mm channel guide.
Round bars: 5 – 51 mm
Hexagonal bars: 5 – 44 mm
Square bars 5 – 36 mm
Bar length: 3200 mm
Max. spindle diameter: 65 mm
Remnant length 400 mm
Bar changeover time 31 sec. (for bar length 3200 mm)
Loader weight: 830 kg
Year: 2008
Location Sheffield UK.
More photos available on request.
