MAKE:
EXCELLO MICHIGAN
YEAR:
New: 1975
Rebuilt: late 1990’s
CATEGORY:
Cold Forming Machinery, Spline Rolling Machinery, Threaders
Machine Overview

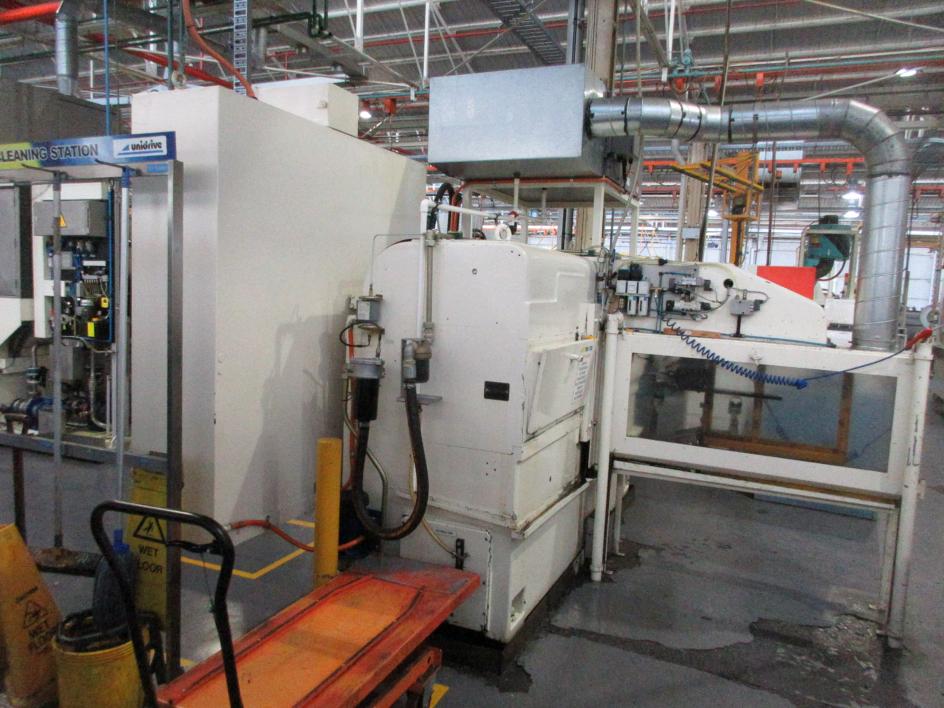

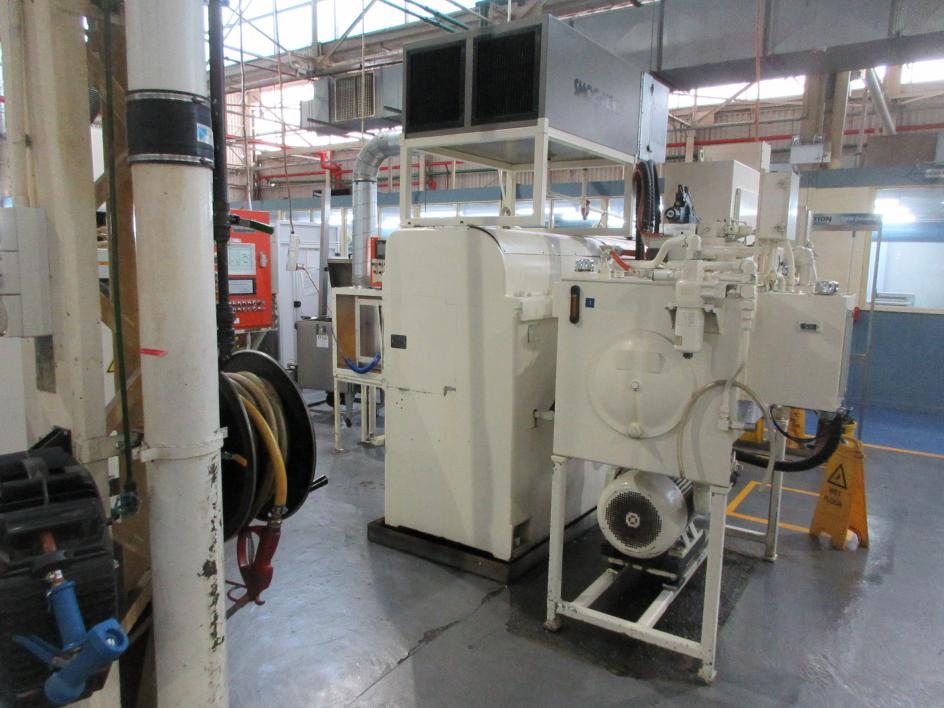

MICHIGAN Rotoflo Type 3237 Cold Forming Machine.
Original Serial Number: 4590
ExCello Serial Number 3888
Country of Origin: USA
For the coldforming of profiles for serrations (straight or angular), spiral teeth, oil grooves, threads and knurls.
CAPACITY
- Maximum slide stroke: 1065 mm
- Maximum rack length: 915 mm
- Maximum profile diameter: 50 mm
- Maximum profile length: 125 mm
- Standard module range: 0.3 to 1.25
- Motor size: 15 kW
- Hydraulic tank capacity: 1000 l
- Overall floorspace width of machine: 5014 mm
- Width of machine: 2768 mm
- Depth with outboard support: 4165 mm
- Height: 2000 mm
- Approximate weight of machine: 11,700 kgs
Complete with: Hydraulically operated outer support assembly to accommodate part length universal headstock, Universal rack holding feature.
